기술개발

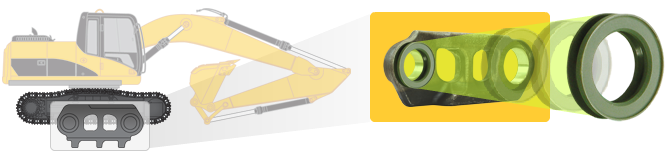

제품안내중장비 트랙링크씰 사업부문기술개발

적 용 기 술	폴리우레탄과 스틸의 완전접착법 독자개발
주 재 료	Polyurethane + PTFE Polytetrafluorethylene + Steel + Special Rubber
생산제품 (Products)	D6CD 외 22종
제품공인인증	ISO 9001:2000 품질인증, 원자력 품질인증
기 술 협 력	특허 6건, 폴리우레탄 재료기술

Maker	Model	Standard inside x outside x height	Weight(ton)	Shape
CATERPILLAR	D3C	34 x 48.3 x 11.2	7	SALT Seal
	D4E	40.0 x 55.3 x 13	9	SALT Seal
	D4H	40.7 x 57.5 x 14.2	11	SALT Seal
	D4H-HD	43.6 x 60.4 x 14.35	13	SALT Seal
	D5B-EWL	43.6 x 59.8 x 12.3	11	SALT Seal
	D5H-HD	46.7 x 63.6 x 14.2	12	SALT Seal
	D6C/D	51.25 x 68.5 x 14.5	10	SALT Seal
	D6H-HD	53.2 x 70.5 x 14.7	17~20	SALT Seal
	D7F/G	56.3 x 73.0 x 14.5	26	SALT Seal
	D7H	59.35 x 75.9 x 14.4	31	SALT Seal
	D8N	59.35 x 78.35 x 14.4	37	SALT Seal
	D8H/K	59.35 x 77.95 x 15.2	31	SALT Seal
	D9N/L	64.8 x 84.1 x 15.2	47	SALT Seal
	D9G/H	68.2 x 87.55 x 14.85	84	SALT Seal
	D10N	73.0 x 92.8 x 15	65	SALT Seal
	D11N	83.6 x 103.2 x 14.85	98	SALT Seal
	D4D	35.3 x 54.9 x 5.7	22	Standard Seal
KOMATSU	D30/31	35.5 x 48.6 x 12.24	7	SALT Seal
	D40/53	43.5 x 56.6 x 11.7	10	SALT Seal
	D155A-2	59.35 x 78.55 x 14.95	41	SALT Seal
	D355A-3	72.0 x 89.2 x 14.95	58	SALT Seal
	D375A-2	78.0 x 100.1 x 14.7	67	SALT Seal
	D60/65	44.67 x 67.5 x 11.6	15	Combination Seal
JICASE	CASE1150D	43.6 x 60.4 x 12.7	10	SALT Seal
	CASE850D/E	40.7 x 55.3 x 13.0	11	SALT Seal
	CASE550E	36.8 x 52.5 x 12.3	8	SALT Seal
JOHN DEERE	JD450D	37.4 x 52.4 x 11.3	8	SALT Seal
JOHN DEERE	JD690	34.0 x 52.0 x 10.4	12	Standard Seal
SAMSUNG	SD4P	24.5 x 41.4 x 9	5	Standard Seal
SAMSUNG	SD6P	29.1 x 47.5 x 9.4	6	Standard Seal
DAEWOO	DD80	29.1 x 46.9 x 10.4	8	Standard Seal
DAEWOO	DD80	29.1 x 46.9 x 12.4	8	Master Seal
